X6 Tethered Lighting Drone
Long-endurance aerial lighting for emergency response, large-area operations, infrastructure work and night-time field applications.
Request a Quote View Specifications
Built for Long-Duration Aerial Lighting
The X6 combines a six-rotor UAV platform, tethered power supply and high-output LED lighting system into one continuous-operation aerial lighting solution.
Why Choose the X6?
Designed for applications where conventional portable lighting cannot provide sufficient coverage or operating duration.
24-Hour+ Continuous Operation
Tethered power enables a standard flight time of ≥24 hours, making the X6 suitable for prolonged night operations and extended field missions.
High-Output LED Illumination
Four LED floodlights provide ≥1,280W total lighting power and ≥160,000 lm luminous flux for large-area aerial illumination.
Up to 200 m Tethered Height
The tethered configuration supports aerial lighting at heights of up to 200 m, helping increase the illuminated operating area.
Six-Rotor Heavy-Lift Platform
The six-axis, six-propeller configuration combines compact folding design, flight flexibility and payload capability.
Multiple Automated Safety Functions
Low-voltage return, signal-loss return, electronic geofence, automatic landing and configurable return strategies support safer operations.
Modular Payload Interface
Multiple interfaces are available for different mission payloads, allowing the platform to be adapted to specific operational requirements.
Large-Area Aerial Illumination
Four LED floodlights deliver high-output illumination from elevated positions, helping improve visibility across large operational areas.
Lighting Performance
| LED Light Quantity | 4 |
|---|---|
| Total Power | ≥1280W |
| Luminous Flux | ≥160,000 lm |
| Color Temperature | 5000K |
| Lighting Brightness | ≥880 lux |
| Protection Rating | IP67 |
| Dimming | 0–100% smooth PWM dimming |
10 m Height
Approx. 400 m2 effective illuminated area.
50 m Height
Approx. 7,800 m2 effective illuminated area.
100 m Height
Approx. 16,000 m2 effective illuminated area.
150 m Height
Approx. 20,000 m2 effective illuminated area.
200 m Height
Approx. 26,000 m2 effective illuminated area.
Designed for Demanding Field Applications
Aerial lighting can provide an elevated lighting source when ground-based lighting is limited by terrain, distance or coverage.
Emergency & Rescue Operations
Provide elevated lighting support for emergency response, search operations and night-time rescue environments.
Fire & Emergency Response
Support large-area illumination during night-time emergency operations where rapid deployment and extended lighting duration are required.
Construction & Infrastructure
Illuminate work areas, structures and project sites from elevated positions during night operations.
Large Outdoor Events
Provide temporary aerial illumination for large outdoor operating areas and event sites.
Power & Utility Operations
Support night-time inspection, maintenance and emergency work around large infrastructure sites.
Industrial & Remote Sites
Suitable for remote or temporary sites where conventional lighting infrastructure is difficult to deploy.
Six-Rotor Platform for Stable Aerial Operations
The X6 uses a six-axis, six-propeller configuration with a lightweight 3K carbon-fiber airframe and folding structure.
Six-Rotor Configuration
1200 mm motor-axis wheelbase with a six-rotor configuration designed for flexible flight and payload capability.
Carbon-Fiber Airframe
3K carbon-fiber construction provides a lightweight, high-strength and corrosion-resistant structure.

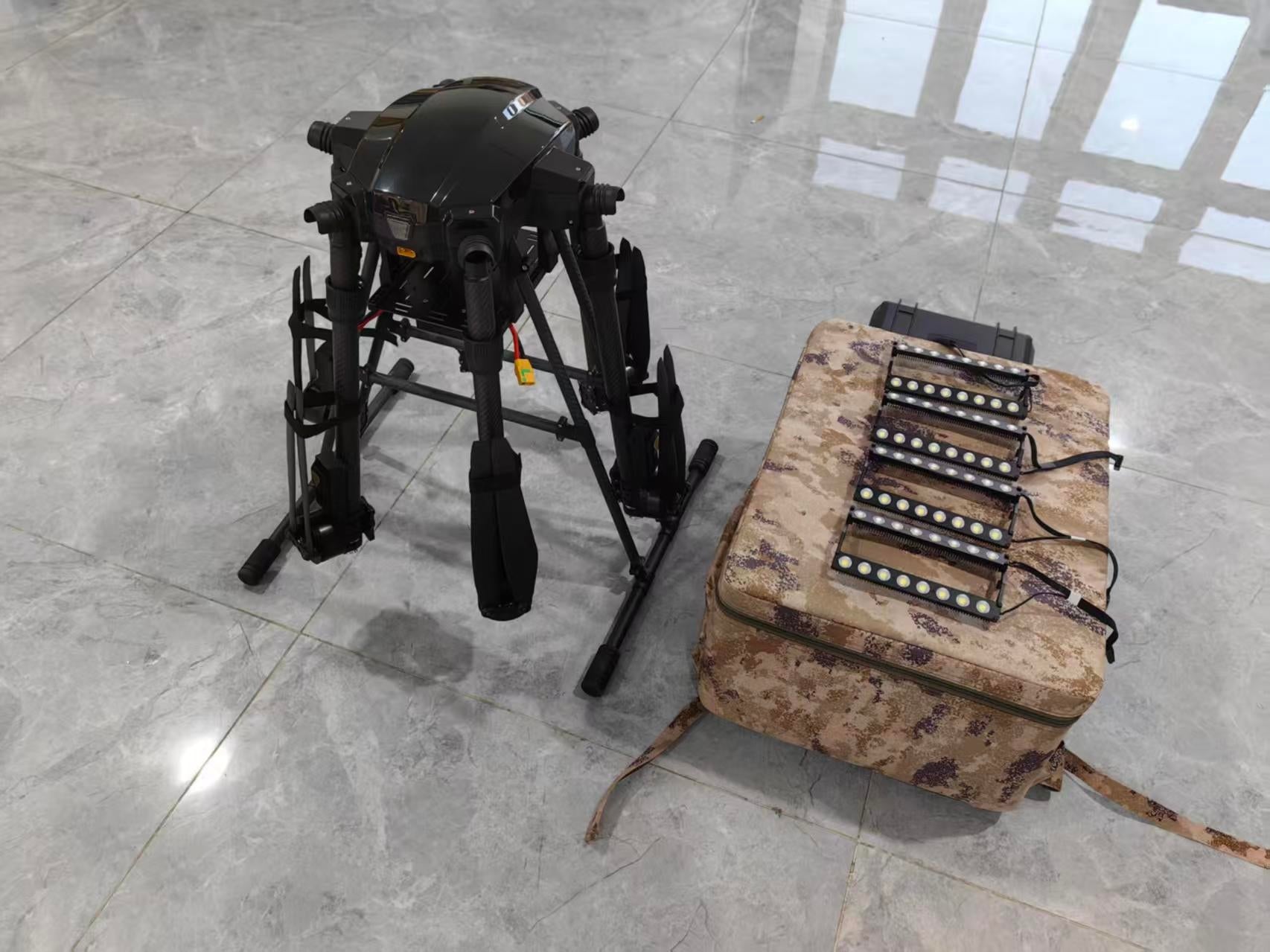

Folding Design
Folded dimensions are approximately 550 × 550 × 500 mm, supporting transportation and field deployment.
IP65 Protection
The aircraft is rated IP65 for dust and water protection and can operate in moderate rain according to the supplied product specification.
High-Altitude Capability
The supplied specification indicates a flight altitude capability of ≥5000 m.
Wind Resistance
Maximum supported wind level is specified as Level 8.
Intelligent Flight & Mission Management
The X6 flight control system supports automated mission planning, real-time monitoring and multiple configurable safety strategies.
Waypoint Missions
Up to 3,000 waypoints and 3,000 backup landing points can be configured for flight missions.
Automatic Return
Supports one-key return, low-voltage return, signal-loss return and configurable return strategies.
Real-Time Monitoring
The APP ground station can display flight status, video, voltage, satellite data, coordinates, altitude, speed, distance and mission information.
Flight Data Logging
Flight parameters and system records can be stored, exported and reviewed for operational management.
Multi-Control Station
Control authority can be switched between different control stations during standby, hovering or flight.
Electronic Geofence
Supports flight range management, electronic geofencing, heading lock and HOME-point related functions.
Professional Tethered Power System

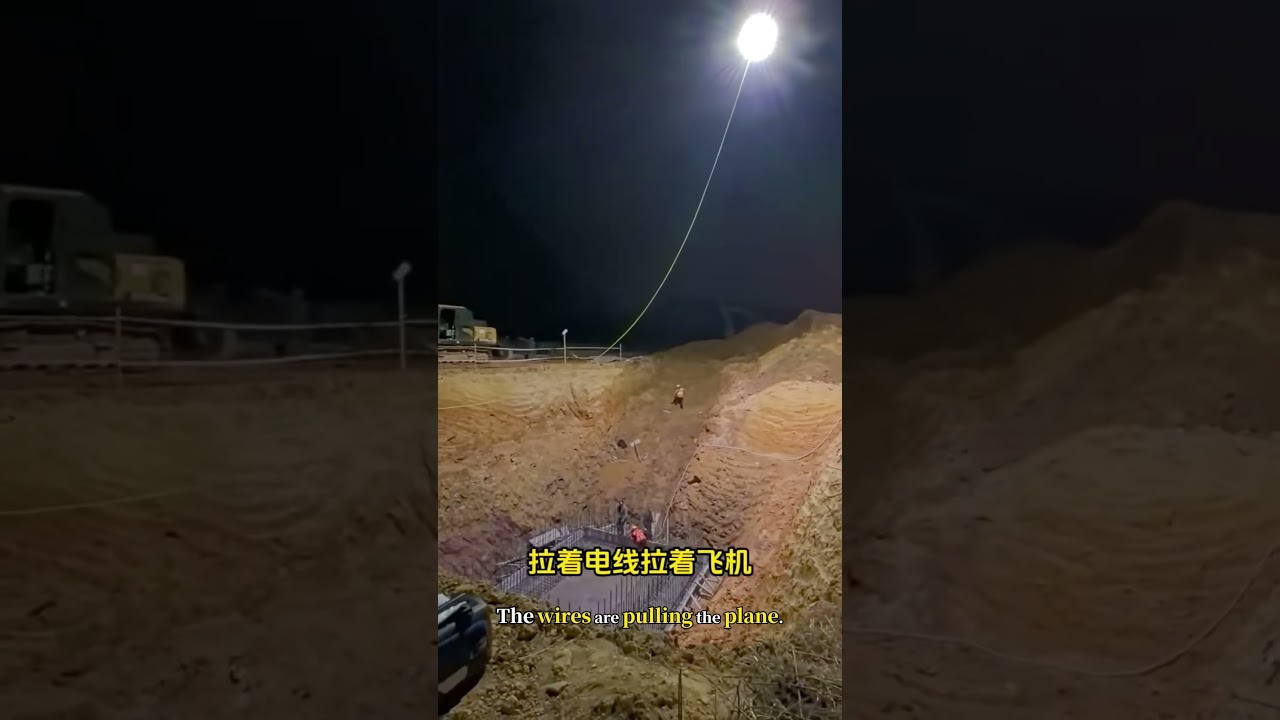

Continuous ground power is delivered to the aircraft through a high-strength 100 m tether cable, supporting extended aerial operation.

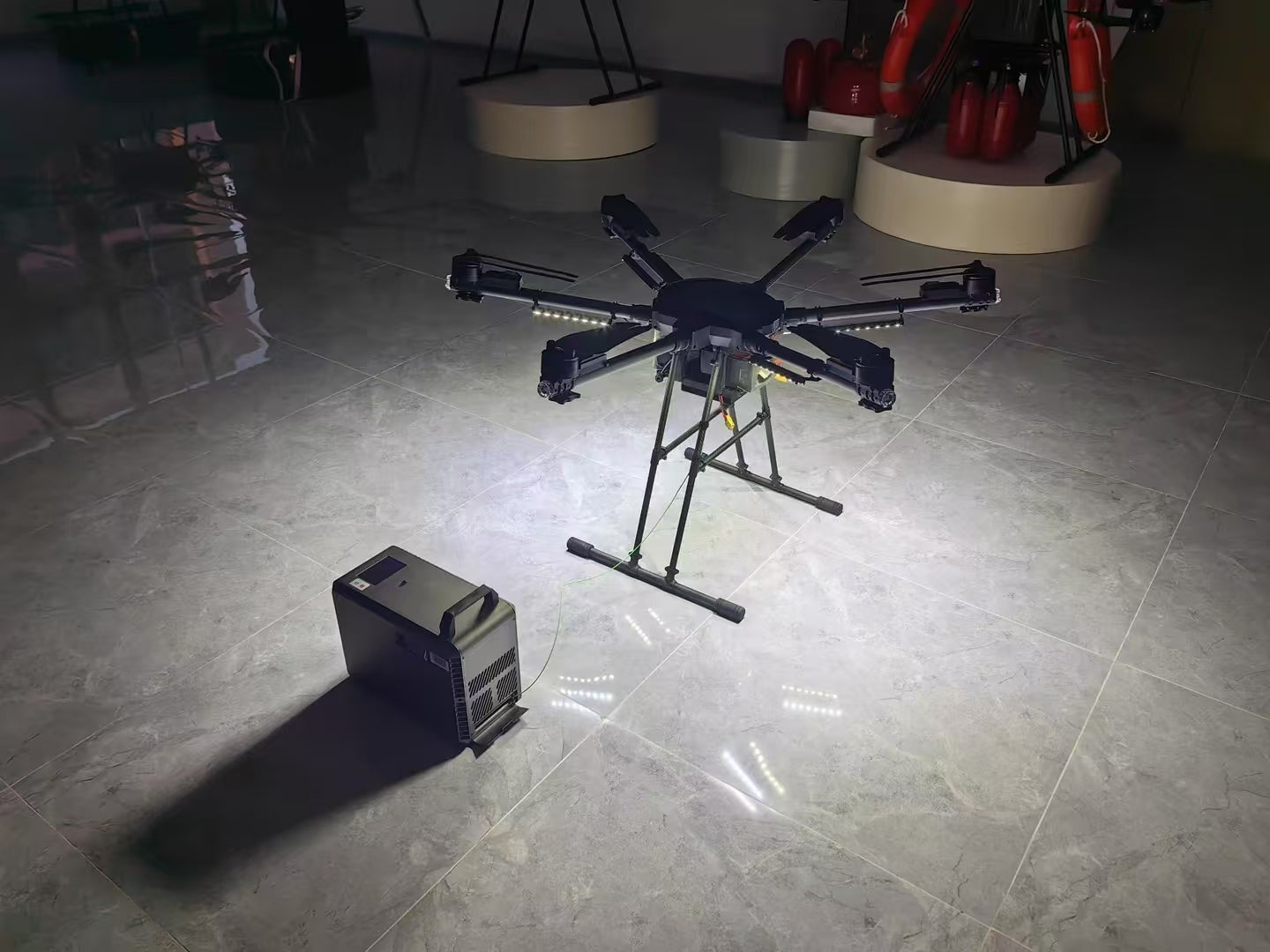

Ground Power Station
Input: 190–380 Vac. Rated long-term output ≥15,000W, short-term peak output ≥20,000W.
Automatic Cable Management
Cable winding speed is adjustable from 0–3 m/s, with adjustable winding tension from 0–20 N.
100 m Tether Cable
100 m cable length, approximately 5.0 mm outer diameter, with a specified tensile strength of ≥200 kg.
High-Voltage Insulation
The cable specification indicates ≥3500 VDC insulation strength for 1 minute without breakdown.
Backup Power Safety
If ground power is interrupted, the system can automatically switch to onboard battery power to support safe flight, return or landing.
Data Monitoring
Ground station data includes voltage, current, power, temperature, cable length, operating time and fault records.

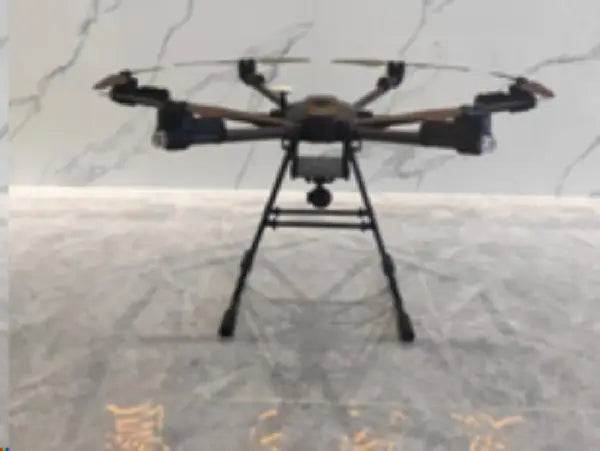

Optional 1080P 3-Axis Gimbal Camera
The X6 platform can be configured with a 1080P three-axis stabilized camera for aerial observation and visual monitoring.
| Resolution | 1080P / 25 fps |
|---|---|
| Stabilization | 3-axis gimbal |
| Operating Temperature | -25°C to 70°C |
| Storage | SD card |
| Functions | Photo / Video |
X6 Technical Specifications
Key specifications based on the supplied X6 product specification.
| Aircraft Type | Six-rotor UAV |
|---|---|
| Motor Axis Wheelbase | 1200 mm |
| Expanded Dimensions | 1500 × 1500 × 500 mm |
| Folded Dimensions | 550 × 550 × 500 mm |
| Propeller | 22 × 5 inch |
| Aircraft Weight | 6.8 kg |
| Maximum Take-Off Weight | 22 kg |
| Standard Flight Time | ≥24 hours |
| Maximum Flight Speed | 70 km/h |
| Maximum Tethered Flight Height | ≤200 m |
| Operating Temperature | -40°C to +70°C |
| Maximum Supported Wind Level | Level 8 |
| Protection Rating | IP65 |
| Hover Accuracy | Vertical ±0.5 m / Horizontal ±0.5 m when GPS positioning is functioning normally |
| Positioning | GPS / GLONASS or BDS / GLONASS |
| Ground Station Control Range | 0–10 km in open, interference-free conditions |
| Tether Cable Length | 100 m |
| Lighting Power | ≥1280W |
| Lighting Output | ≥160,000 lm |
| Lighting Color Temperature | 5000K |
| Lighting Protection | IP67 |
Specifications are based on the supplied product documentation. Configuration, optional modules and final technical parameters should be confirmed with DIDIOK MAKINGS before ordering.
Built for Professional Buyers
The X6 is positioned as a professional aerial lighting platform for organizations requiring extended-duration illumination, configurable payloads and field deployment capability.
Government & Public Safety
Suitable for emergency response organizations, public safety departments and other professional operational units.
Equipment Distributors
A specialized product category for UAV, emergency equipment, industrial equipment and professional lighting distributors.
System Integrators
Multiple interfaces and payload support allow integration into customized operational systems.
